WF60EB Compact Automatic Edge Banding Machine with Pre-Milling for Small & Medium Furniture Workshop

Description Review

Description

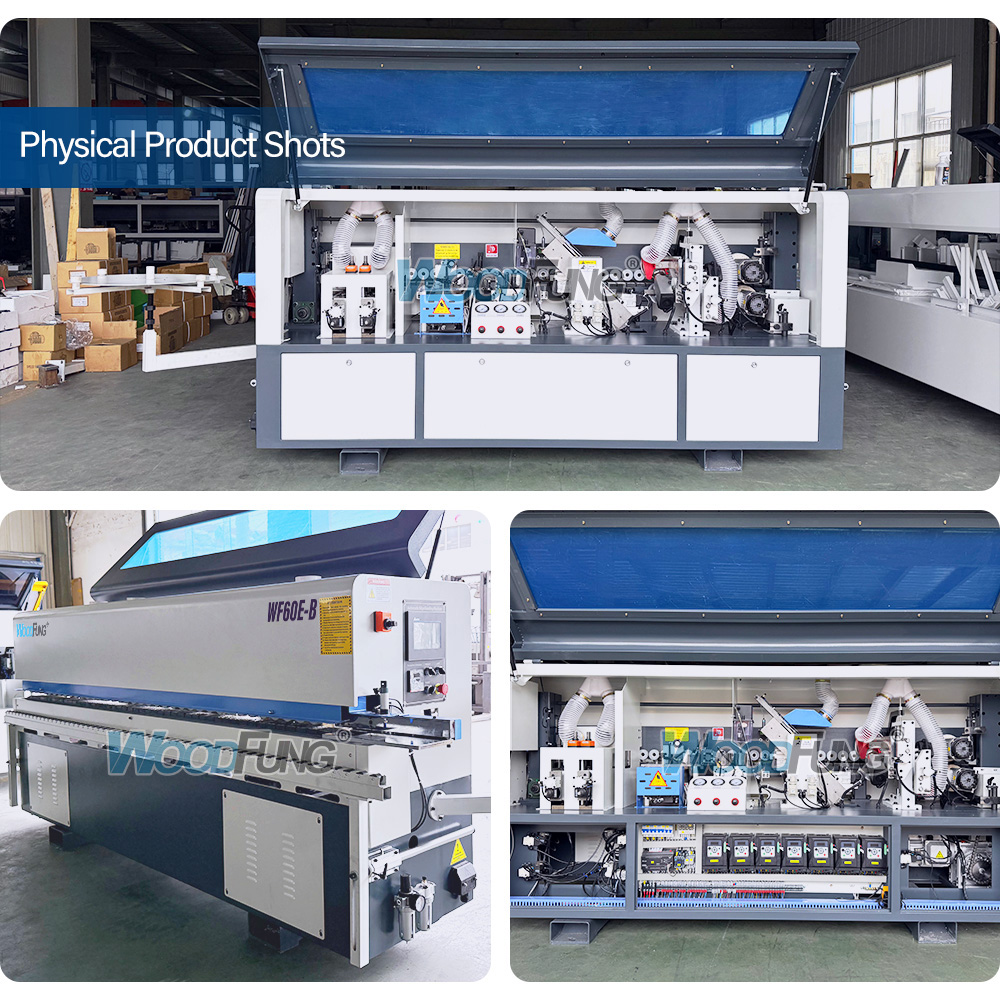

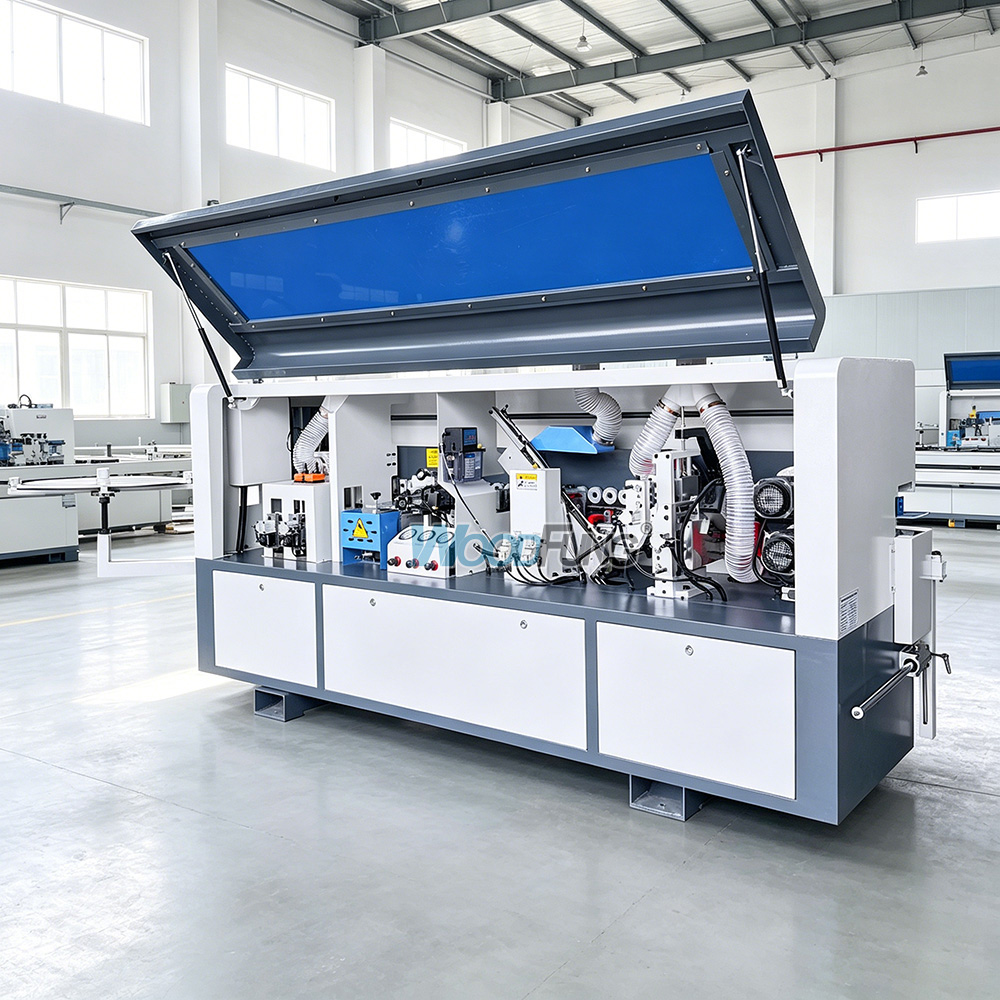

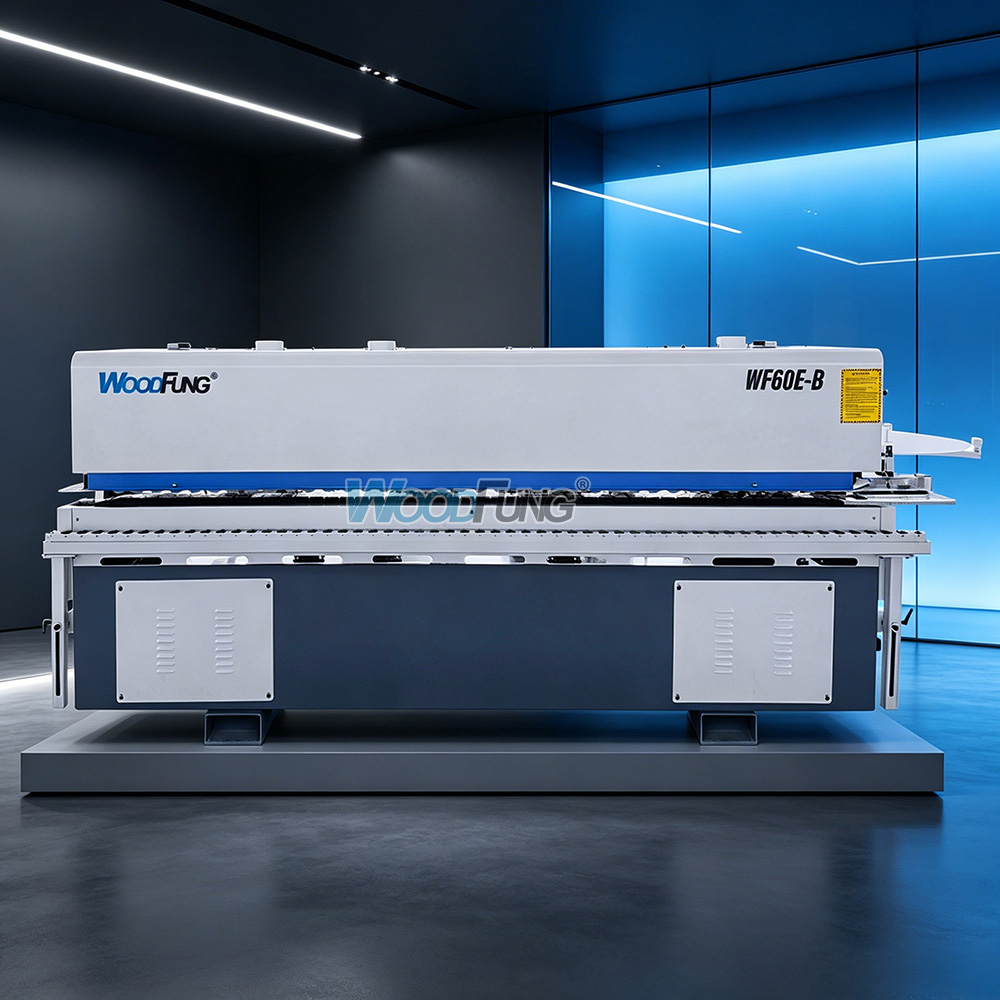

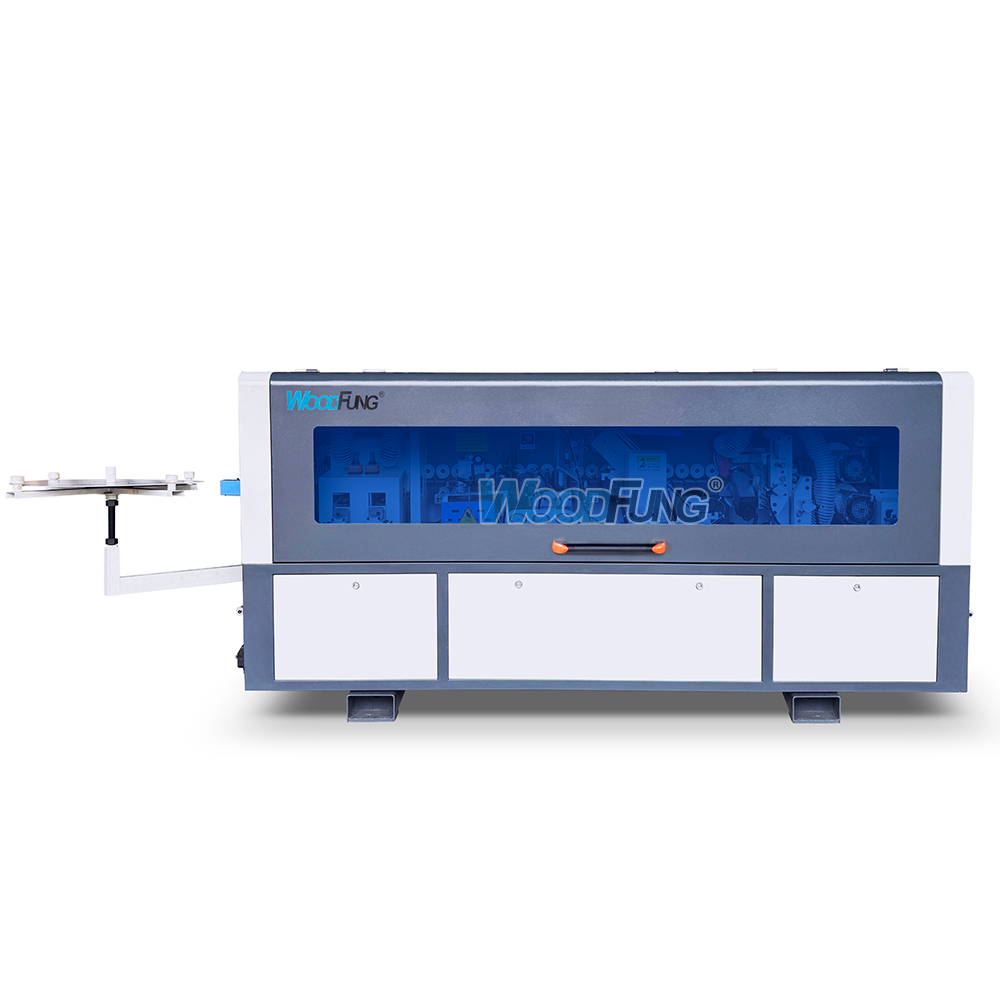

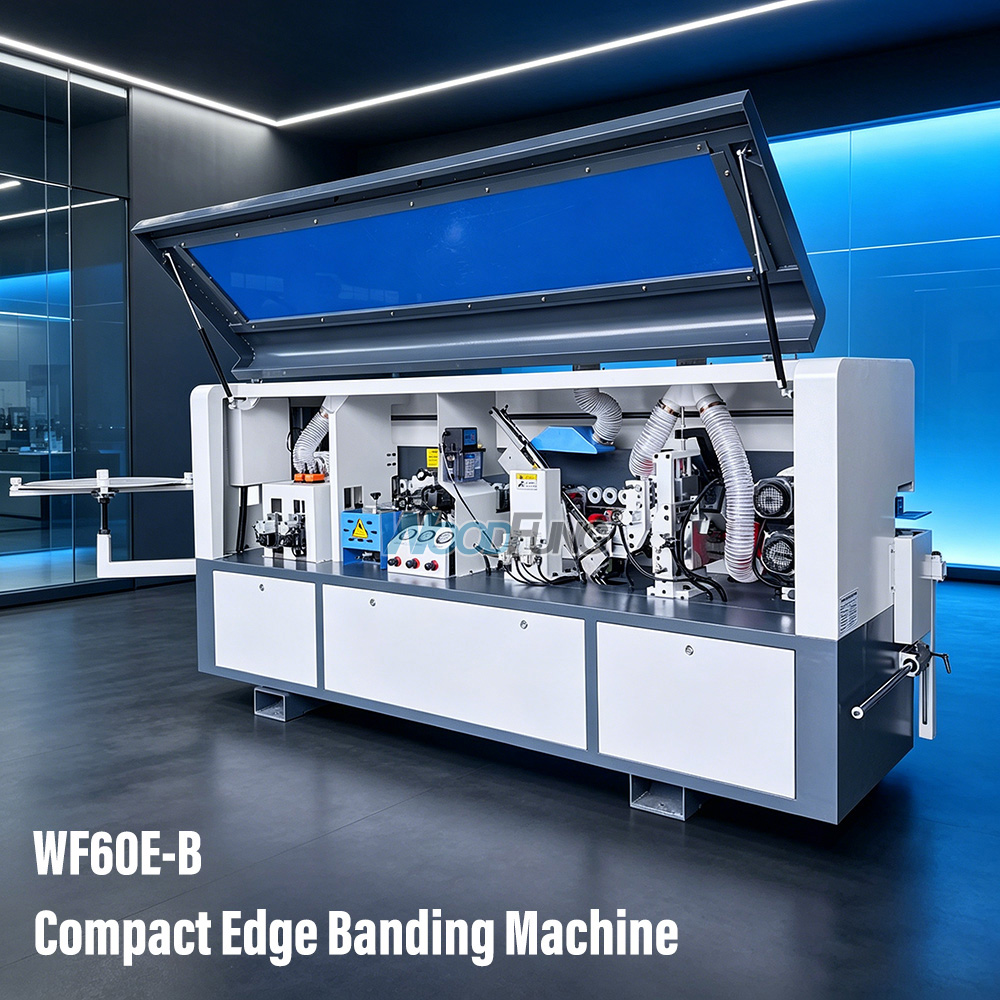

WF60E-B Compact Automatic Edge Banding Machine

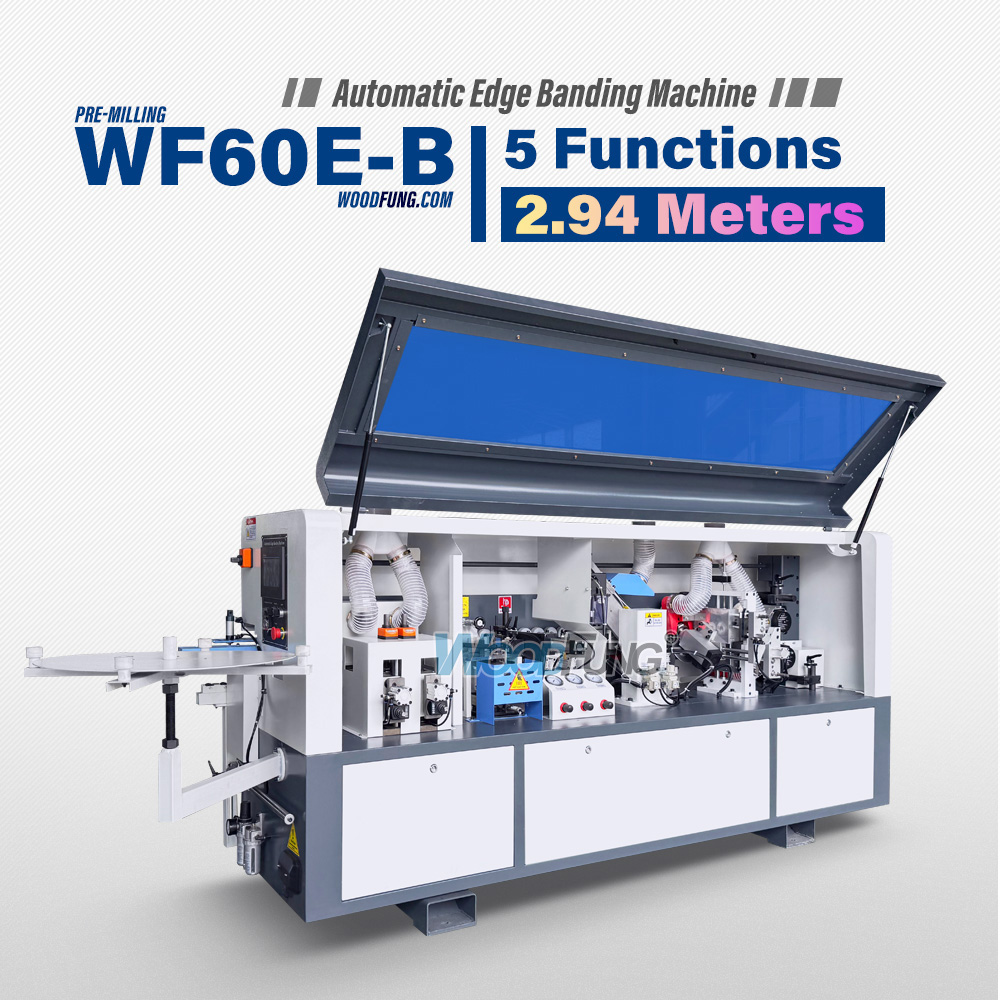

5 Core Functions | 2.94m Compact Size | Delta Touch Screen Control

Woodfung Professional Woodworking Machinery Manufacturer

Suitable for MDF, Particle Board, Plywood, Melamine Board, Cabinet Door Making

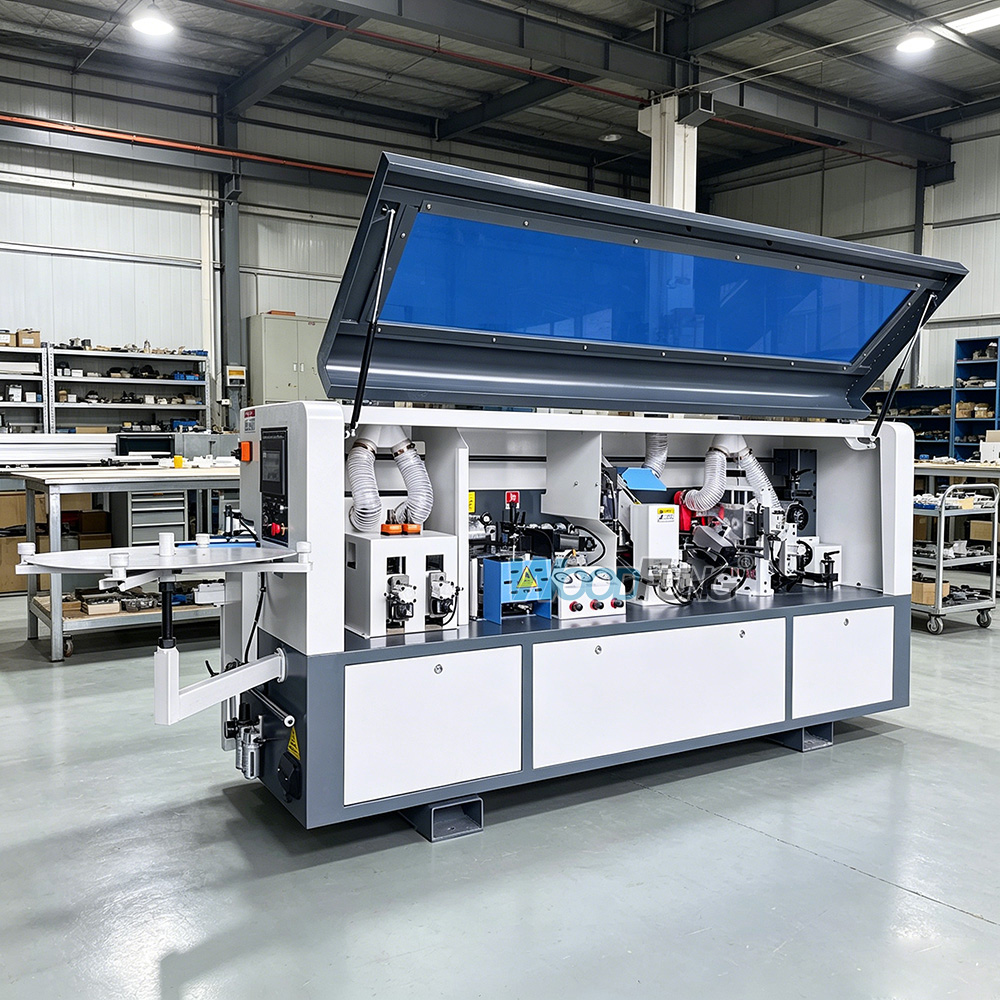

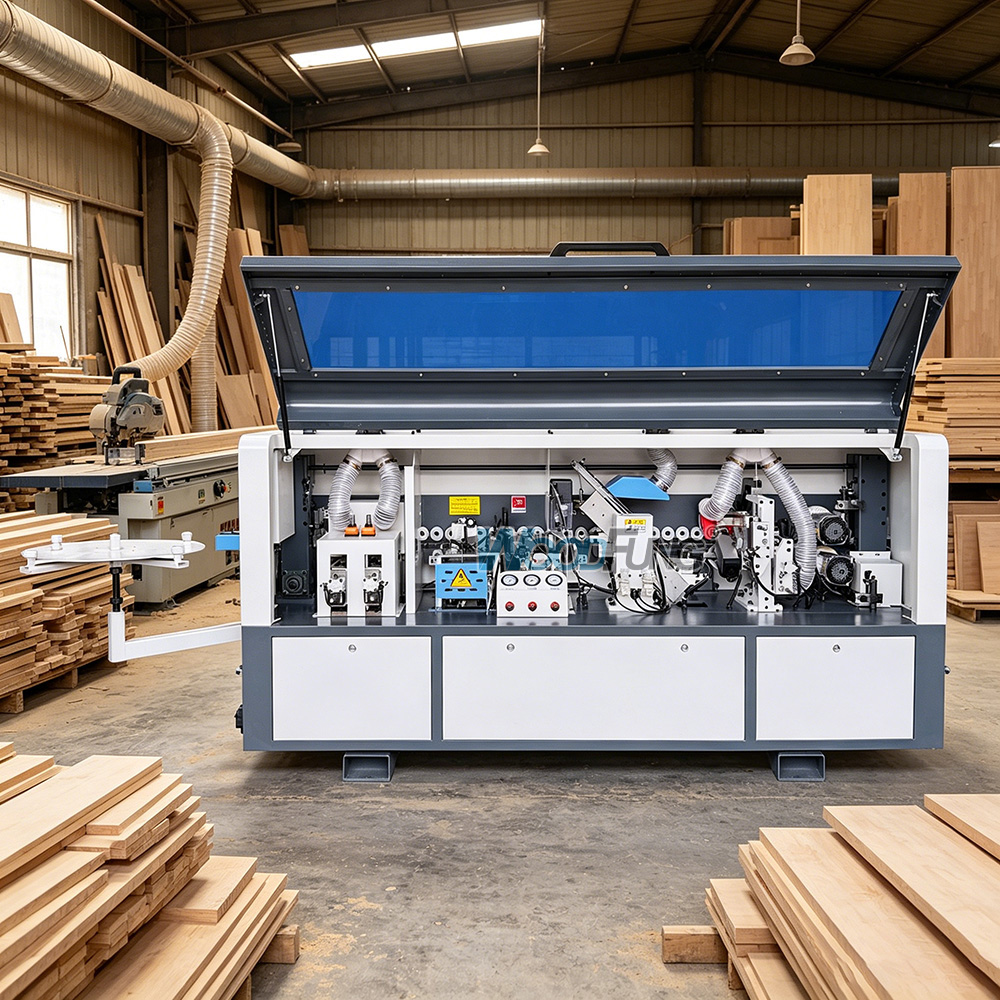

WF60E-B is a cost-effective compact automatic edge banding machine developed by Woodfung, total length only 2.94 meters, save workshop space greatly.

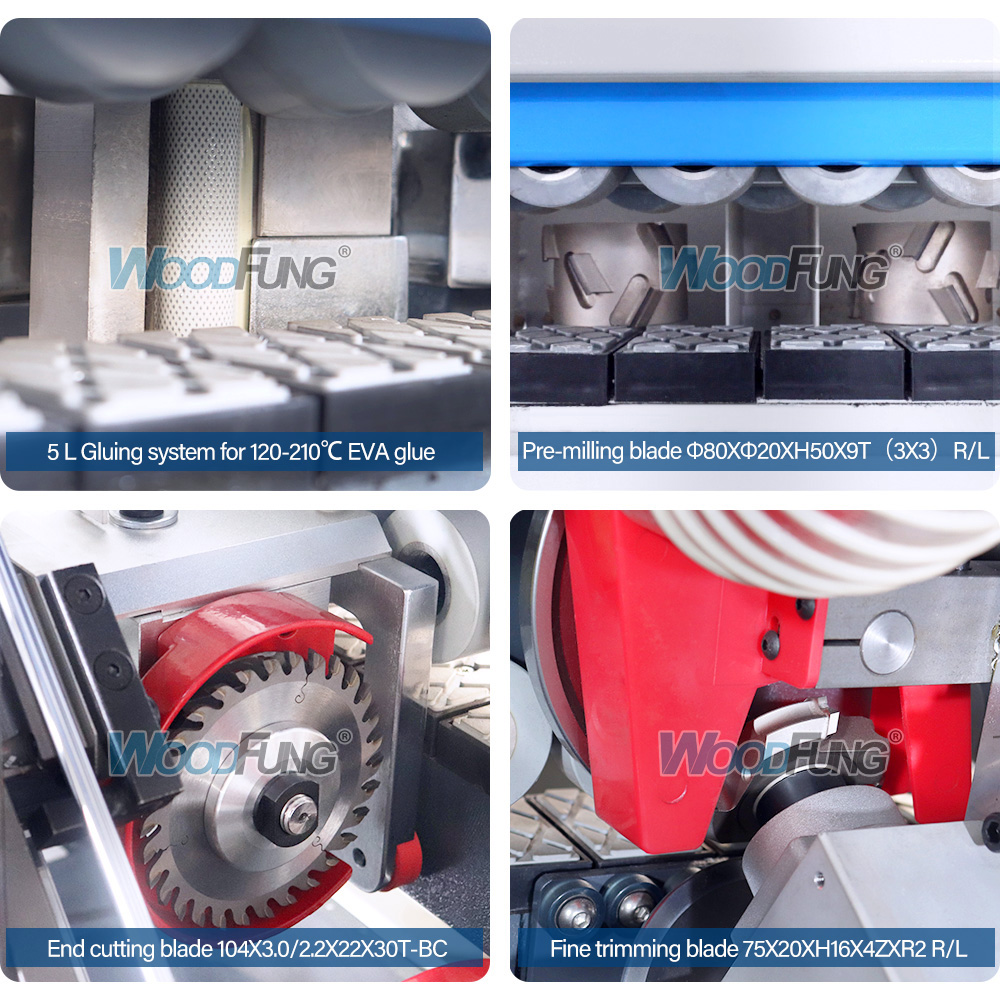

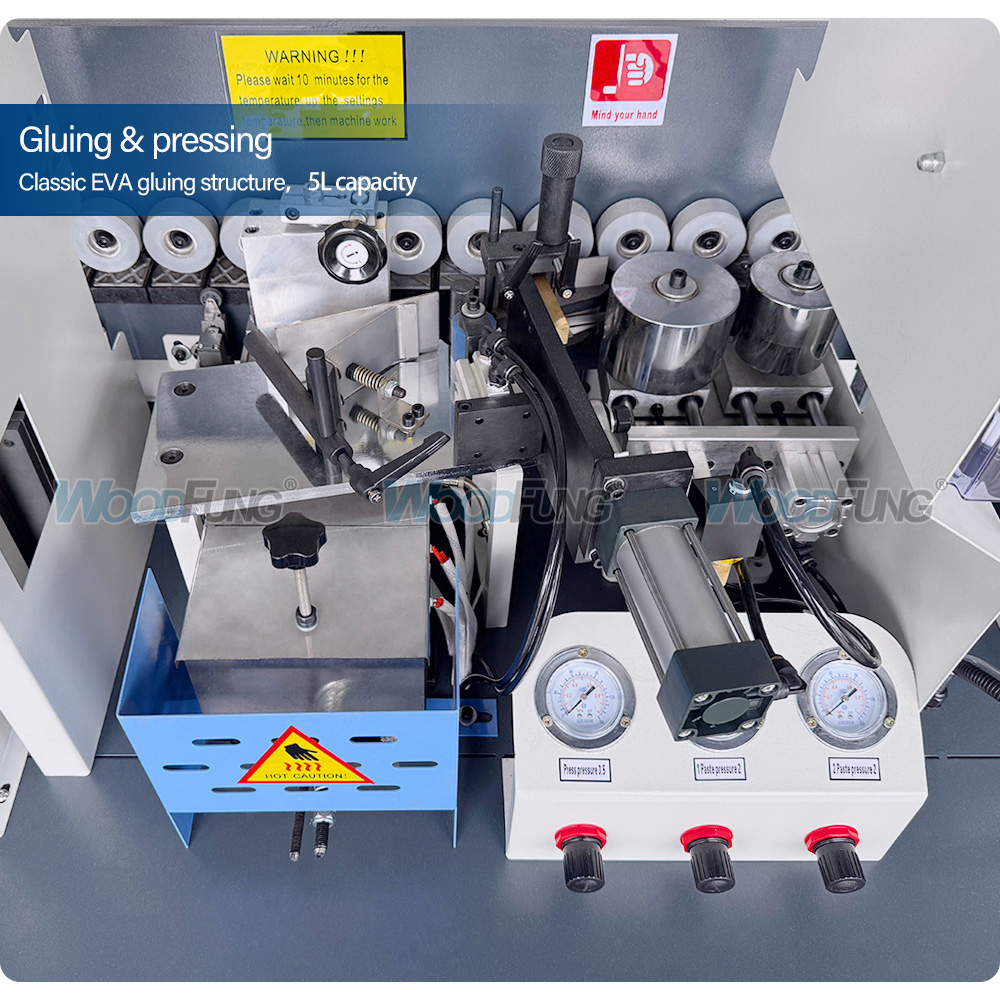

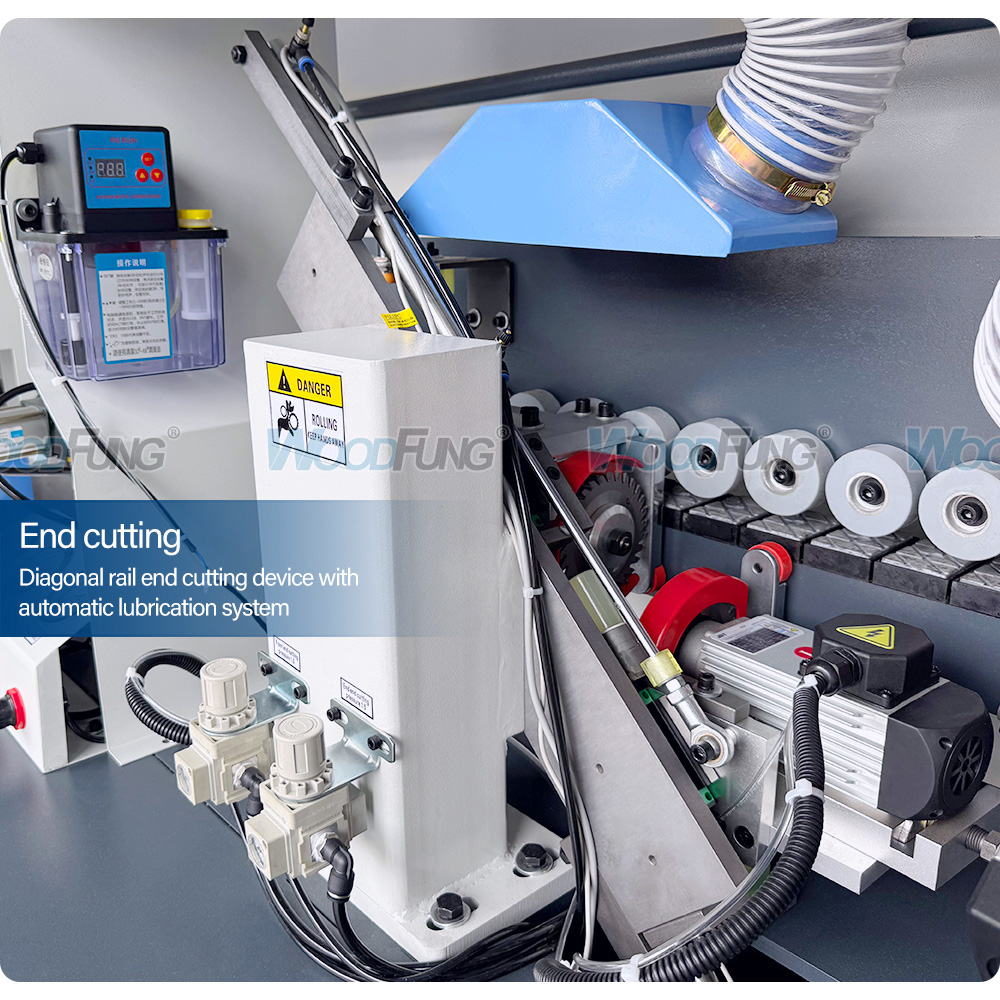

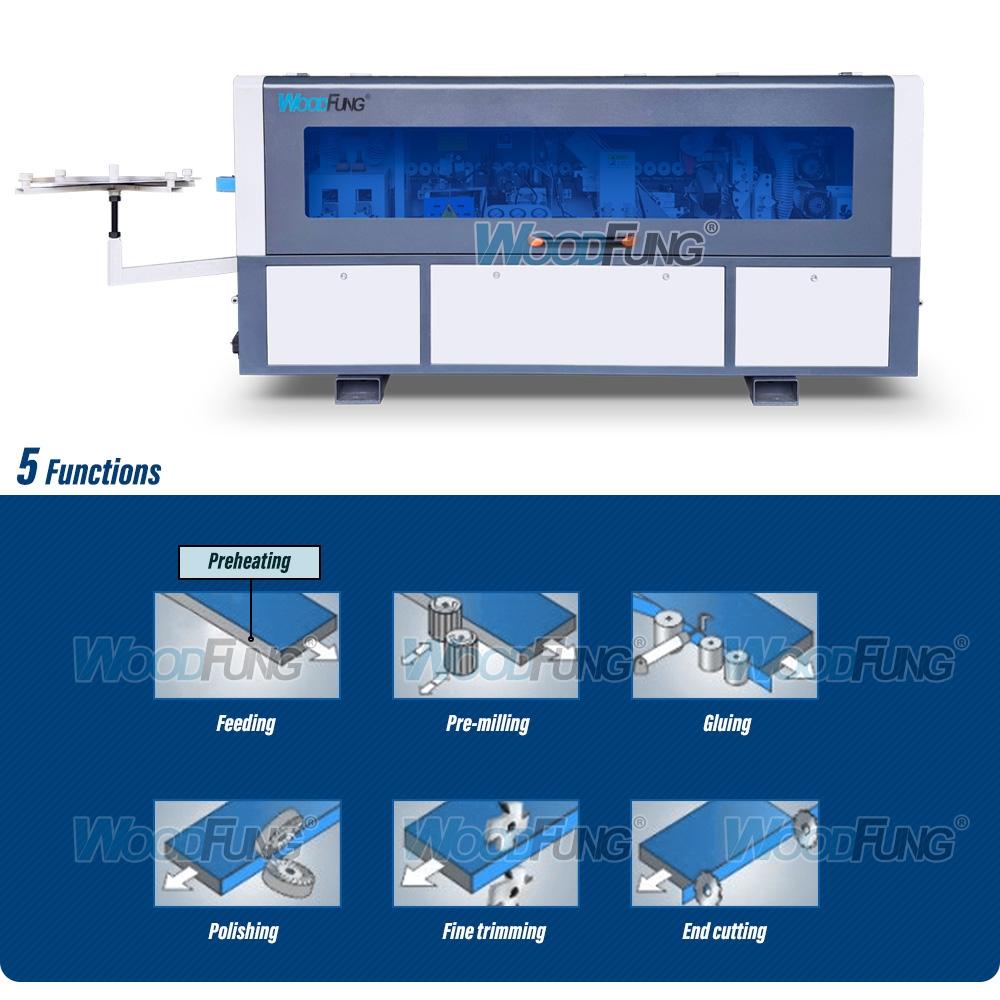

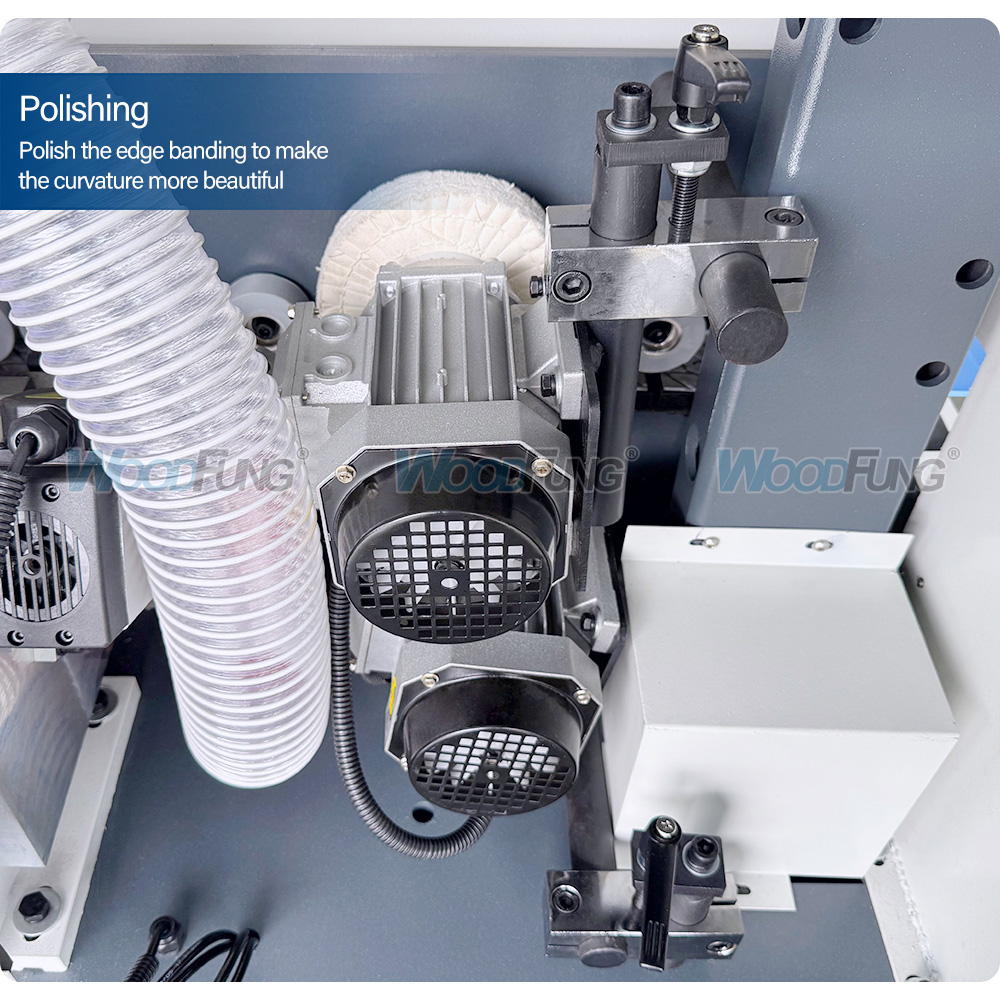

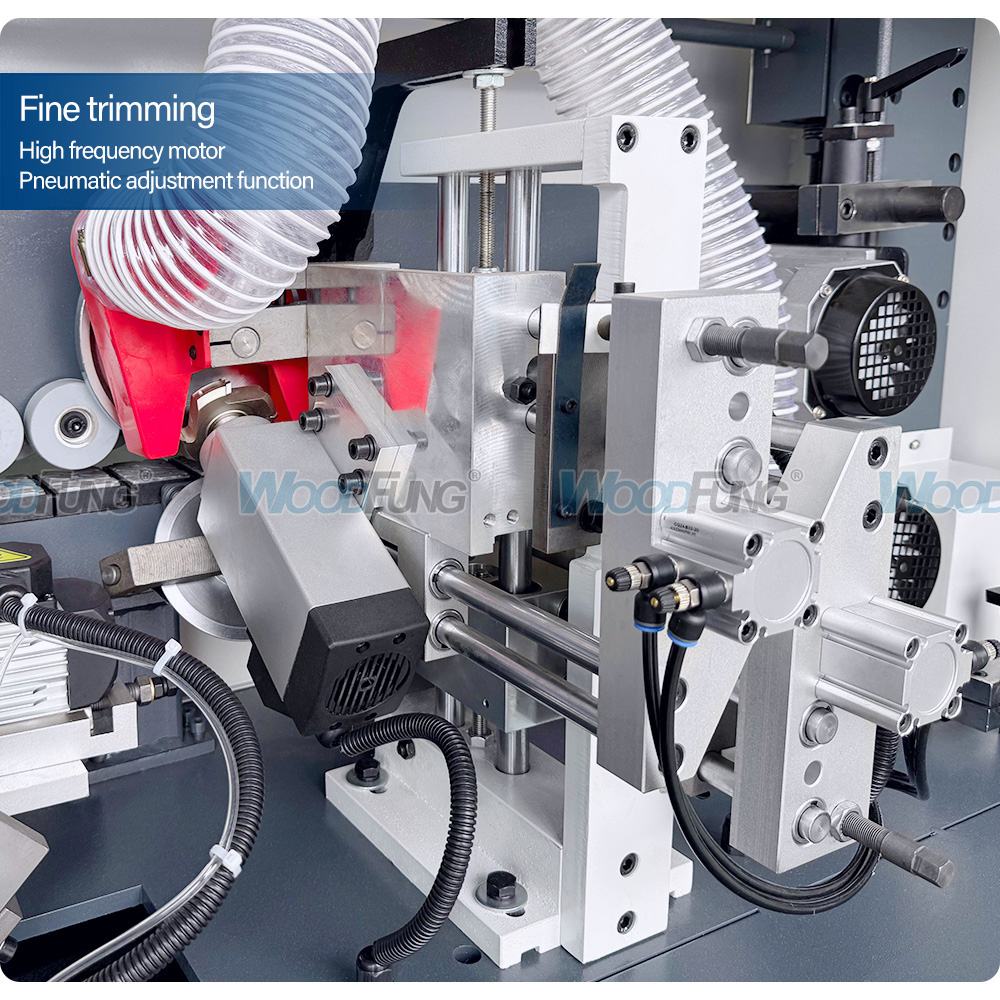

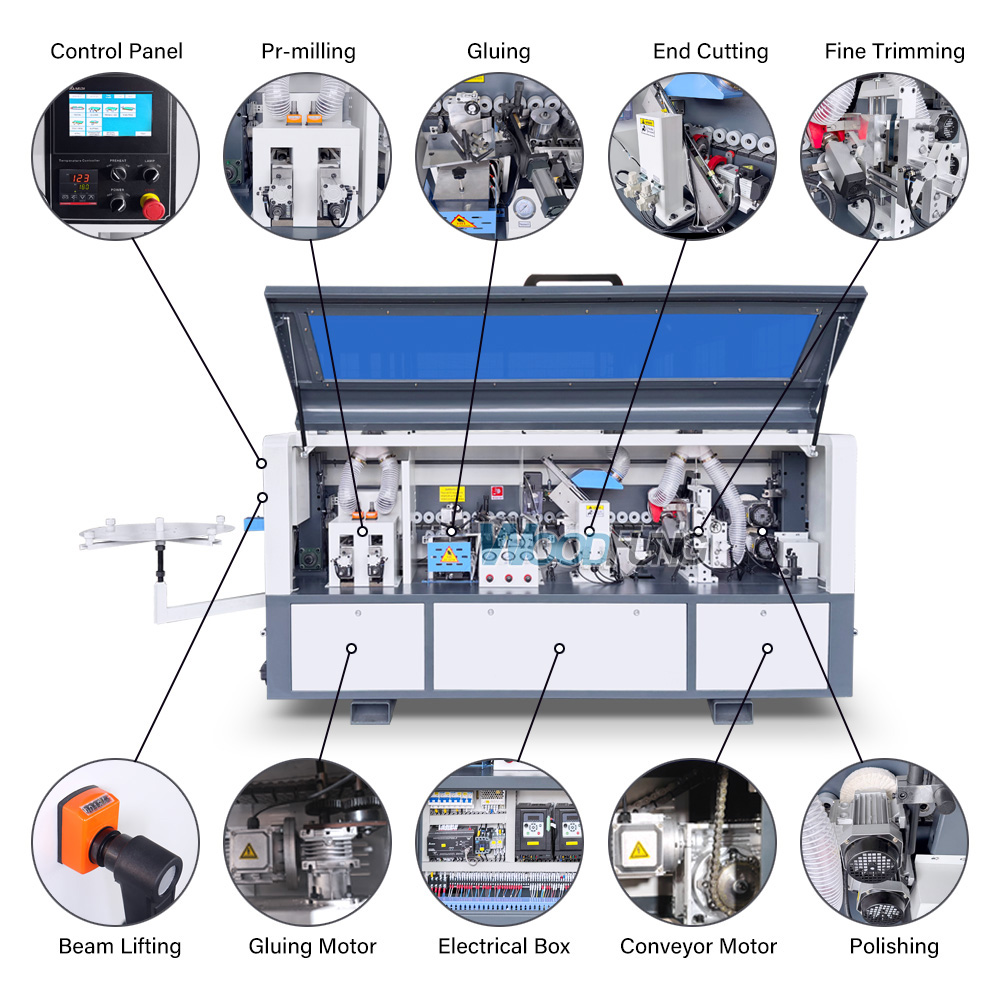

Integrated 5 complete edge banding processes: Feeding→Preheating→Pre-milling→Gluing→End Cutting→Fine Trimming→Polishing, one-pass finish perfect edge sealing.

Customizable appearance, dimension, functions and internal structures to meet different furniture production demands.

Features

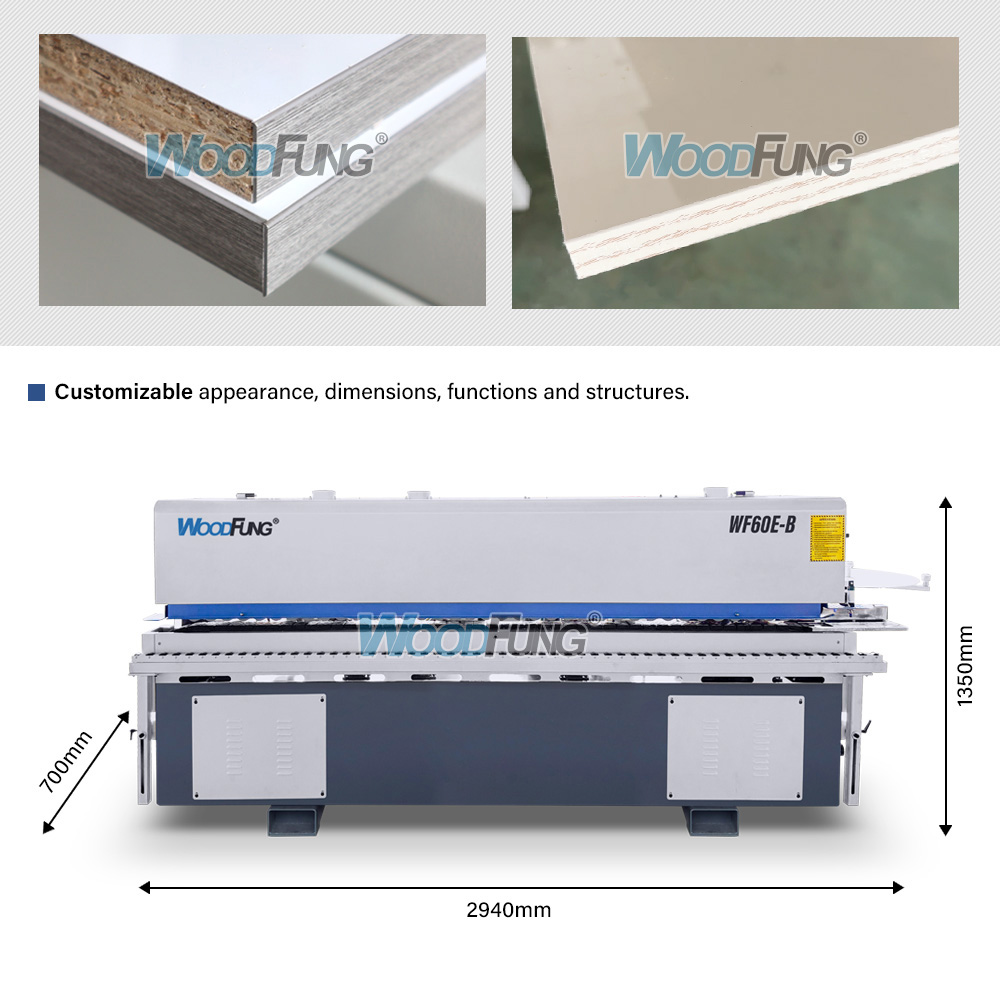

1. Space-saving Compact Design: Only 2.94m length, ideal for small furniture workshop, mini factory

2. Complete 5-in-1 Function: One machine finish full edge banding process, no need extra equipment

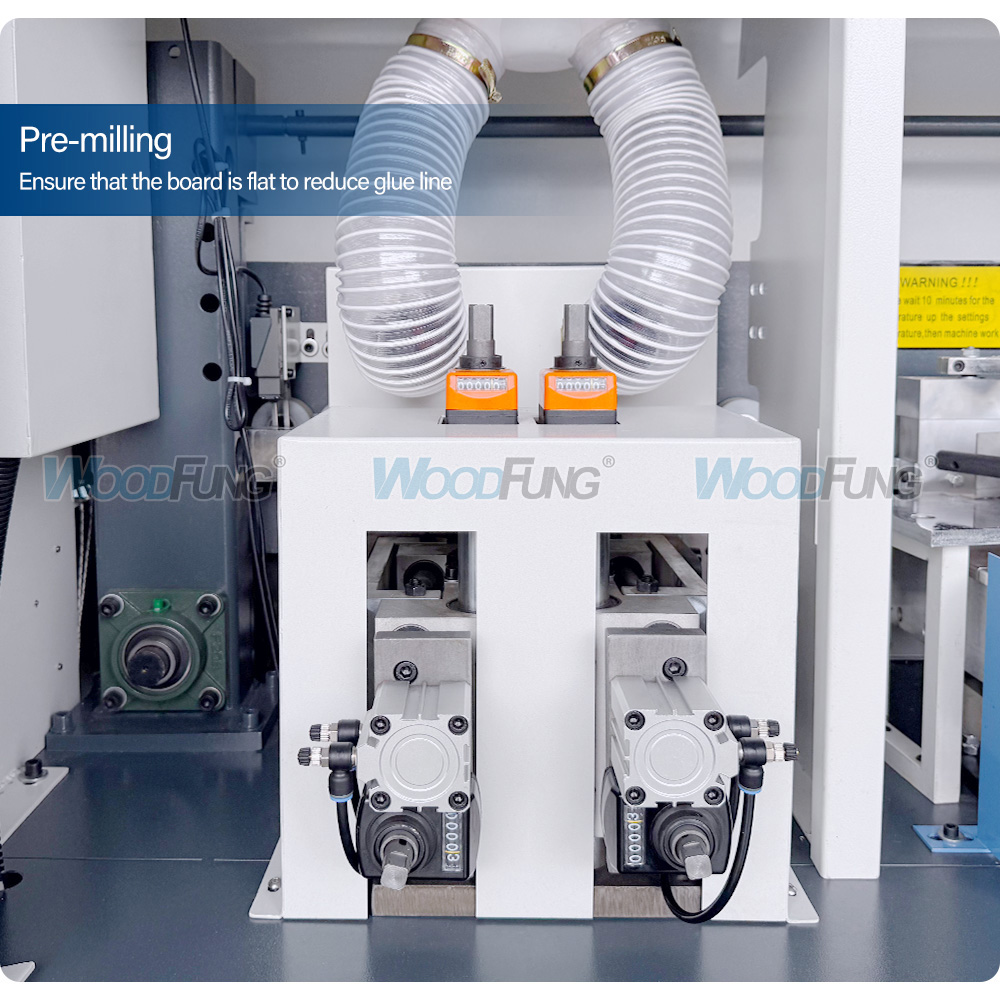

3. Double Pre-milling Structure: Solve uneven board edge problem, invisible glue line

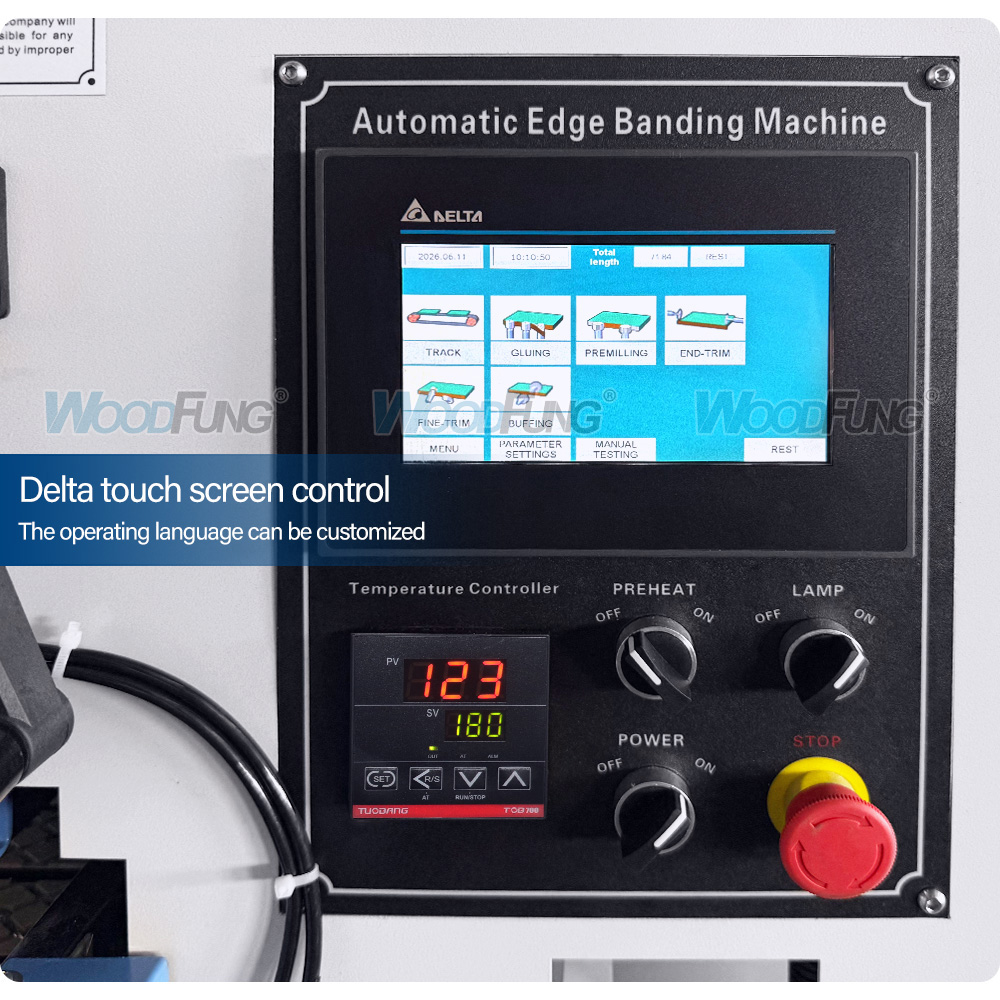

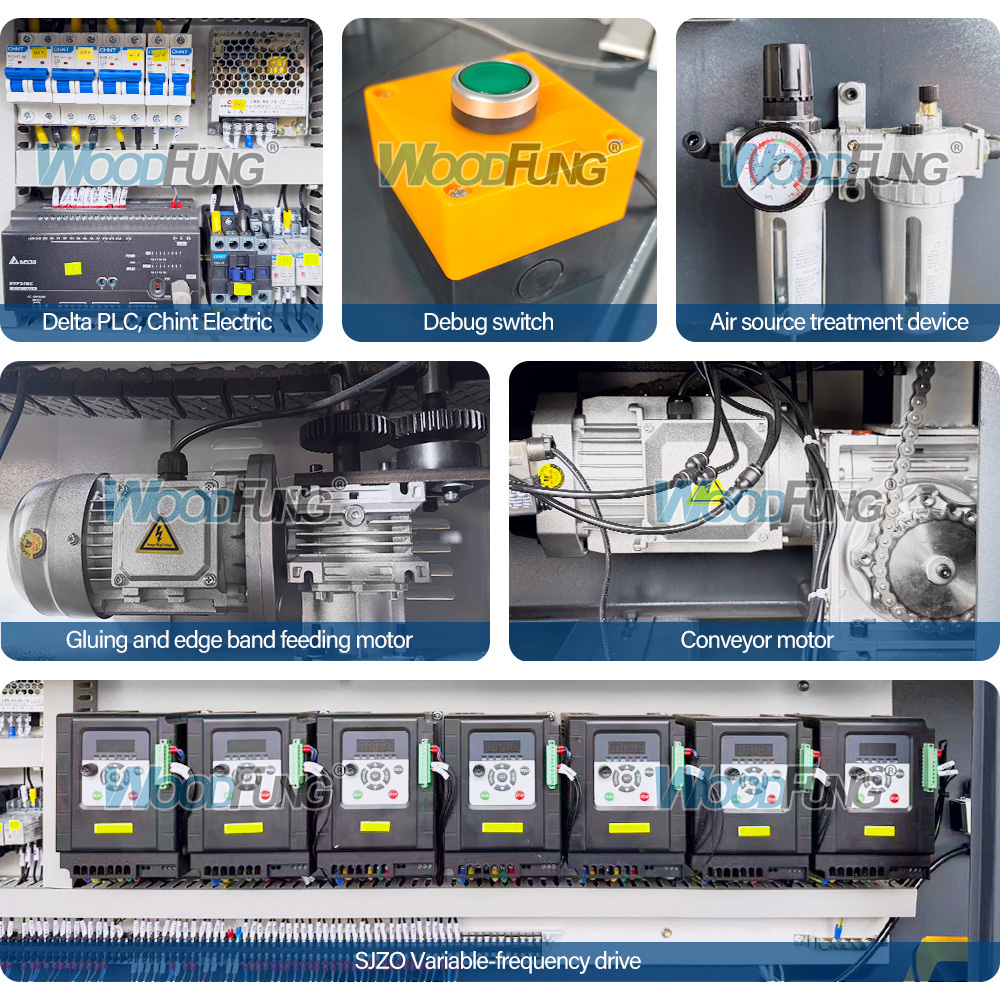

4. Brand Delta Touch Screen: Easy operation, stable control, multi-language support

5. Full Pneumatic Auxiliary System: Cylinders & speed regulating valves for buffer operation, reduce collision

6. Customization Support: Change machine color, add extra functions (scraping, buffing), adjust size as request

7. Complete After-sales: 1 year warranty for main motors, lifelong technical support, spare parts supply

Specifications：

Model	WF60E	WF60E-B	WF60E-3	MY12	MY13
Power	6.5KW	10.1KW	7KW	10.6KW	12KW
Voltage	380V/220V	380V/220V	380V/220V	380V/220V	380V/220V
Working speed	18m/min	18m/min	18m/min	12/14/18m/min	12/14/18m/min
Board thickness	12~50mm	12~50mm	12~50mm	12~50mm	12~50mm
PVC thickness	0.4~3mm	0.4~3mm	0.4~3mm	0.4~3mm	0.4~3mm
Board width	>=60mm	>=60mm	>=60mm	>=60mm	>=60mm
Working pressure	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
Overall size	23007501350mm	29507501350 mm	33007501350 mm	39007501350mm	54007501350mm
Weight	650kg	950kg	900kg	1100kg	1800kg
WF60E functions	2.15m automatic edge banding machine with gluing,end trimming,fine trimming, and buffing,very compact,1.35m height
WF60E-B functions	2.95m automatic edge banding machine with pre-milling,gluing,end trimming,fine trimming, and buffing,aluminum beam and automatically lift
WF60E-3 functions	3m automatic edge banding machine with gluing,end trimming,fine trimming, arc scrapping and buffing,aluminum beam and automatically lift
MY12 functions	3.5m automatic edge banding machine with premilling, gluing,end trimming,fine trimming, arc scrapping and buffing,aluminum beam and automatically lift
MY13 functions	5.4m automatic edge banding machine with premilling, gluing,end trimming,fine trimming, corner rounding, scrapping and buffing
OTHER MODELS FOR CHOICE	WF360A/WF360B/WF360C/WF360YC/WF360YCC/WF360G/WF360D/WF360F/WF360F-2,PUR edge banding,UPPER GLUE POT

FAQ

1. Customization & OEM/ODM Service
With over 12 years of export experience in edge banding machines, our professional sales and R&D team support custom solutions: control language, machine color, logo, functions, electrical components, packaging and full technical support.

2. Quality Assurance
Our edge banders adopt 12mm thick machine frames, branded electrical parts, and assembly by workers with more than 10 years of experience.

3. Production Lead Time
Small woodworking machines (MY07, MY04, mini edge banders, table saws) are in stock, only 2-5 days for double testing and packing. Large machines take 20-35 days for full production procedures.

4. Shipping Terms & Payment Methods
We support EXW, FOB, CIF, DDP. Available payments: TT, LC, Western Union. We cooperate with reliable freight forwarders for over 5 years.

5. After-sales Support
We supply user manuals and operation videos in English, Spanish and other local languages, plus remote installation guidance and online training.

6. Why Trust Us
Gold supplier on Made-in-China (11+ years) and Alibaba (8+ years). 12+ years focused on woodworking machinery. We have 40,000+ YouTube followers, 1,000+ Facebook fans, and official accounts on Twitter & LinkedIn. You can also find us via Google search.

7. Become WOODFUNG Distributor
Simply contact us. We provide brand authorization, marketing pictures and installation videos for local promotion, together with competitive distributor pricing.

8. Warranty Policy
WOODFUNG & Aucox offer an 18-month machine warranty and sufficient spare parts supply.
